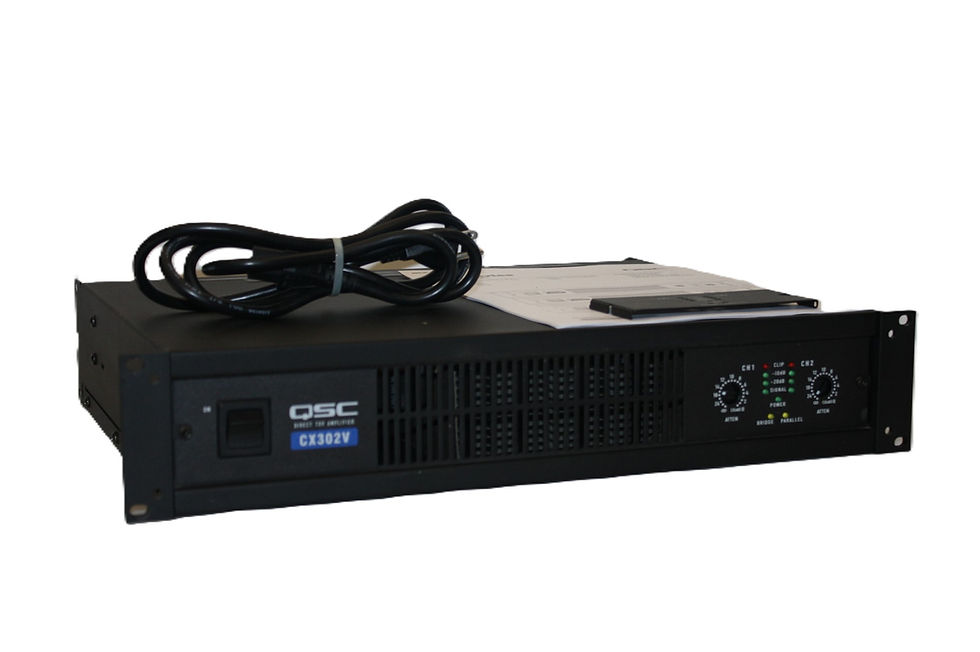

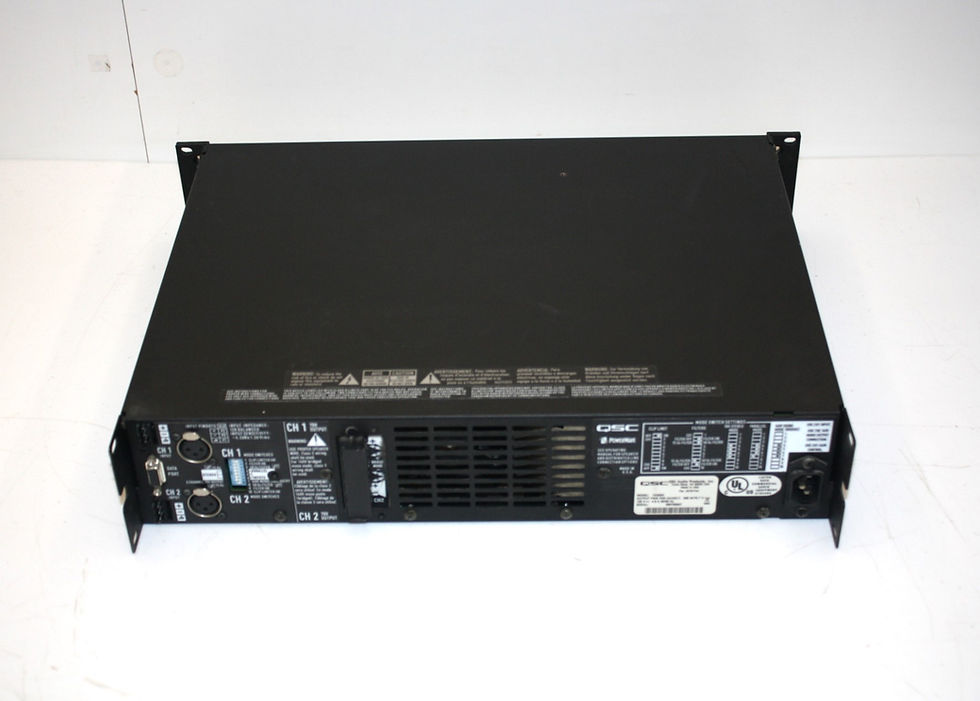

QSC CX302V Commercial Power AMP 70 Volt Line  200 WPC - This is a 70V or 140V line power amplifier designed for commercial and industrial fixed installations. The unit features PowerLight switch-mode power supply technology for high performance and efficiency, plus features like active inrush limiting and a custom security cover. Key attributes include 200W per channel at 70V or 400W Mono bridged, selectable high-pass filters, and an HD15 DataPort for network control via QSC - Q-SYS. The unit was recently serviced and tested DALAUDIO. The unit was thoroughly cleaned (see photos), all signal level pots were cleaned, and the unit inspected and tested. The unit is in good operating condition. Note: We have both JBL and EV line level speakers so if you are looking to set up a business, restraint, bar, nightclub, for a shop or garage, let us know! Original price around $1500.

Cash Sale No Holds Call or Text for Pick-up Only

Key Features:
70V Direct Drive: Designed for distributed sound systems in commercial settings.
PowerLight Technology: An exclusive switch-mode power supply for high performance, low heat, and compact size.
High Output & Reliability: Offers high thermal capacity and comprehensive protection for demanding installations.
Flexible Operation: Channels can be bridged for increased power and feature selectable high-pass filters.
Install-Specific Design: Includes 1-dB detented gain controls, a security cover, and barrier strip outputs.
Network Control: Features an HD15 DataPort connector for integration with the Q-SYS network audio platform for remote control and monitoring.
Lightweight & Compact: Only 2 rack units high and 14" deep, weighing 21 pounds for ease of installation.
Advanced Protection: Built-in circuitry safeguards against short circuits, DC, infrasonic, ultrasonic, and thermal overload.
Ideal For: Permanently installed sound systems in businesses, industrial facilities, and other commercial environments.
Applications requiring high reliability, precise gain control, and network-based audio management.

Performance Specifications
Output power @70V (per ch x 2ch ): 200 W - (20 Hz–20 kHz, 0.05% THD) 250 W (1 kHz, 0.05% THD) (1 kHz, 1% THD): 300 W
Output power (bridged mono) 140V: 400W - (20 Hz–20 kHz, 0.1% THD), 500W (1 kHz, 0.05% THD): (1 kHz, 1% THD): 600 W
Signal-to-noise ratio: >-106 dB (20 Hz–20 kHz)
Frequency response: 20 Hz–20 kHz
Total Harmonic Distortion: (<0.01\)% at 1 kHz, full rated power\(<0.02\)% for SMPTE-IM distortion
Damping factor: >500
Input impedance: 12 kΩ balanced, 6 kΩ unbalanced
Cooling: Variable-speed fan with rear-to-front air flow
Dimensions: 19" (W) x 3.5" (H) x 14" (D) (2 RU)
Weight: 21 lbs (9.5 kg)
Connectivity and controls Inputs (per channel): 3-pin XLR and a 3-pin detachable terminal block connector.
Output: Safety-shrouded barrier strip connector.
Digital I/O: HD15 DataPort connector for network control.
Controls: Front-panel detented gain controls, rear-panel DIP switches for setting clip limiters, high-pass filters, bridge mono, and parallel operation.
