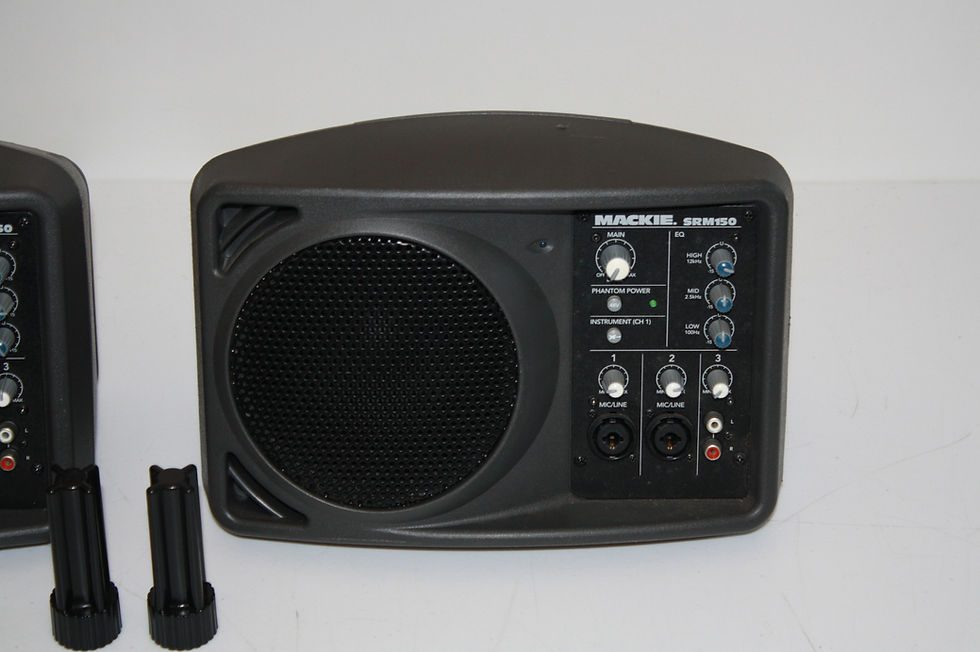

Mackie SRM150 Powered Active Multi Use PA Monitor Speaker Set/ Pair - Ideal for a multitude of uses from A/V to live music performance, the Mackie SRM150 Compact Active PA System features a 3 channel built-in mixer, 3 Band Eq, exceptionally high output, and good performance its class and price range. These have been fully tested and serviced by DALAUDIO and are fully operational. The only condition issue is a section of a heatsink fin is missing on one monitor. If you would like a copy of the manual please bring a USB drive. Please see all photos.
Cash Sale No Holds Call or Text for Pickup Only
Features:
Stand Mount for mic stand, making it the ideal personal monitor.
True 48V phantom power for powering the most finicky of mics
You can send your output to FOH for more speakers with the thru output.
Plug in Anything: Channels 1 and 2 can be used for mic/line sources, with handy combo jack that accepts either ¼" TRS or XLR connections. Channel 1 also has an instrument switch giving you all the benefits of a DI box built right in.
RCA inputs so you can connect a smartphone, etc.
Internal Amp/Speaker - SRM150's powerful 150W Class-D amplifier with an equally impressive 5.25" full range, weather-resistant neodymium driver. The SRM150 puts out a blistering 120dB SPL @ 1 meter, far more than the competition offers.
Jack of All Trades: Perfect for guitar, keyboard or even vocalists who want full control of their monitor but still need to get their sound to a front of house mixer. Simply plug straight in, then connect the thru output to wherever it needs to go. With its instrument and mic inputs, the SRM150 is great for small practice spaces where only two inputs are needed, even hook up a music source to the RCA inputs to play along with your favorite tracks.
Specifications:
Frequency Response: (–3 dB) 100 Hz - 17.5 kHz
Frequency Range: (–10 dB) 60 Hz - 22 kHz
Max SPL Long-Term: 110 dB @ 1 m / Max SPL Peak 120 dB @ 1 m
Mixer Section Freq Response (–3 dB) 5 Hz - 40 kHz (+0, –1 dB) (Mic In to Line Out, Gain at 0 dB):
Input Impedance: Mic: 3 kΩ bal, Hi-Z: 20 kΩ bal. Instmt:1 MΩ, Line: 10 kΩ bal, Stereo: 10 kΩ bal
Maximum Voltage Gain : Mic In 1/2: 51 dB, Stereo In: 9 dB
Maximum Input Level: Mic: –28 dBu, gain at +50 dB +15 dBu, gain at +6 dB
3-Band Equalization: High: ±15 dB @ 12 kHz, Mid: ±15 dB @ 2.5 kHz, Low: ±15 dB @ 100 Hz
Thru Out Mic Level Pad: –30 dB
Common Mode Rejection Ratio (CMRR): 55 dB (1 kHz, gain at unity)
Noise (20 Hz to 20 kHz BW, 150Ω Source Impedance)
Equivalent Input Noise (EIN): –129 dBu
Residual Output Noise: –85 dBu (Line out, channel and master levels off)
Power Amplifier : Rated Power 100W / MaxPower 150W peak
Rated THD: < 0.05%
Cooling: Convection Extrusion
Design: Class D
Transducer: Diameter : 5.25" (134 mm), Voice Coil Dia. 1.0" (25.4 mm)
Magnet Material: Neodymium
Universal Power Supply 100 VAC - 240 VAC, 50 - 60 Hz, 35 VAC
AC Connector: 3-pin IEC 250 VAC
Safety Features: Overload Protection Limiter, Thermal Protection Amp shutdown, auto-reset
Construction Material: Polypropylene
Finish: Grey, textured finish
Handles: One on top
Grille :Perforated metal with weather-resistant coating
Display LEDs: Power ON, and Phantom Power ON
Operating Temperature 32 - 104 F (0 - 40 C)
Dimensions (H x W x D) 8.0" x 11.2" x 6.8"
Weight: 7.6 lbs (3.4 kg)
