Electro-Voice Sx200 2-Way System with Sb120 Sub and Xp200a EQ - Together these components create the Electro-Voice System 200 is a 300-watt RMS capable, professional loudspeaker system designed for a variety of applications, including live sound, stage monitoring, and installed systems, offering reliable performance, durability, and ease of setup.

System Includes:
Qty (2) Electro-Voice Sx200 12-inch, two-way passive loudspeakers
Qty (1) Electro-Voice Sb passive 12-inch bass module (subwoofer)
Qty (1) Electro-Voice Electro-Voice Xp200A is an electronic system controller (Crossover, EQ, Control)

Recent Testing: These EV components were all recently tested and reviewed by DALAUDIO and found that they are in excellent working condition. These are known for clear, powerful, and natural-sounding vocals due to its constant-directivity horn and optional Low-Frequency Profile (LFP) circuit (a switch on back). It is an excellent, lightweight, and relatively easy-to-transport portable system that performs well for mid-range and high frequencies but benefits from pairing with a subwoofer to handle excessive sub-bass. We are including system documentation, and have more so please bring a USB drive. If you need mixers, amplifiers, equalizers, cables, road case or a complete set up, we will be happy to put that together for you. Ideal for DJ, Clubs, Large Shop/Garage or outdoor parties.

Cash Sale No Holds Call or Text for Local Pick-up Only.

Key Features of Sx200 2 Way Loudspeakers:
Passive Design: The SX200 is a passive speaker, meaning it requires an external amplifier to power it.
Components: It utilizes a 12-inch DL12BFH woofer and a DH2010A high-performance compression driver
Constant-Directivity Horn: A 65°x 65° horn provides even sound distribution, ensuring vocals cut through in noisy environments.
Power Handling: Continuous power handling of 300 watts, a program rating of 600 watts, and a peak rating of 1200 watts.
Connectivity: It features ¼-inch and Speakon input connectors for flexible and reliable connection.
Portability: Durable, lightweight plastic moulded enclosure, weighing 39 pounds for easy transport and setup.
Application Versatility: Ideal for front-of-house, side fills, delay lines, stage monitors, commercial and live performance venues.
Varipath™ Throat Geometry: design feature of the horn directs output to corners of the room, ensuring better coverage area.
System Integration: Designed to integrate with Electro-Voice Sb120a bass modules, to create a complete System 200™.
The Electro-Voice (EV) Sb120 is a compact, high-performance, passive 12-inch bass module (subwoofer) designed to enhance the low-frequency output of professional sound reinforcement systems.

Key features
Compact and lightweight design: Constructed from high-impact polypropylene structural foam, the Sb120 is exceptionally durable yet weighs only about 32.2 pounds (14.6 kg), making it very easy to transport.
12-inch woofer: The cabinet houses a DL12sb long-throw 12-inch woofer, which was specifically engineered for this subwoofer. The driver has a special shallow-cone and deep-frame geometry that allows for a very high peak-excursion, delivering impressive bass for its size.
High power handling: The subwoofer can handle 300 watts of continuous power (long-term) and up to 1,200 watts of peak power.
Integral handle and stand socket: A carrying handle is molded into the cabinet, along with a stand socket for mounting a full-range speaker on top. This allows for the creation of a compact, stacked speaker system.
Neutrik Speakon connectors: The unit features two parallel Neutrik Speakon NL4MP connectors, which provide a reliable connection and allow for the daisy-chaining of multiple speakers.
Passive: Requires an external amplifier.
Ideal use: The Electro-Voice Sb120 was designed for sound reinforcement applications where a compact, lightweight system is preferred, such as for mobile DJs, small live music venues, or as a low-frequency extension for portable PA systems. It is frequently paired with other EV speakers, like the Sx or Zx series, for a complete system.

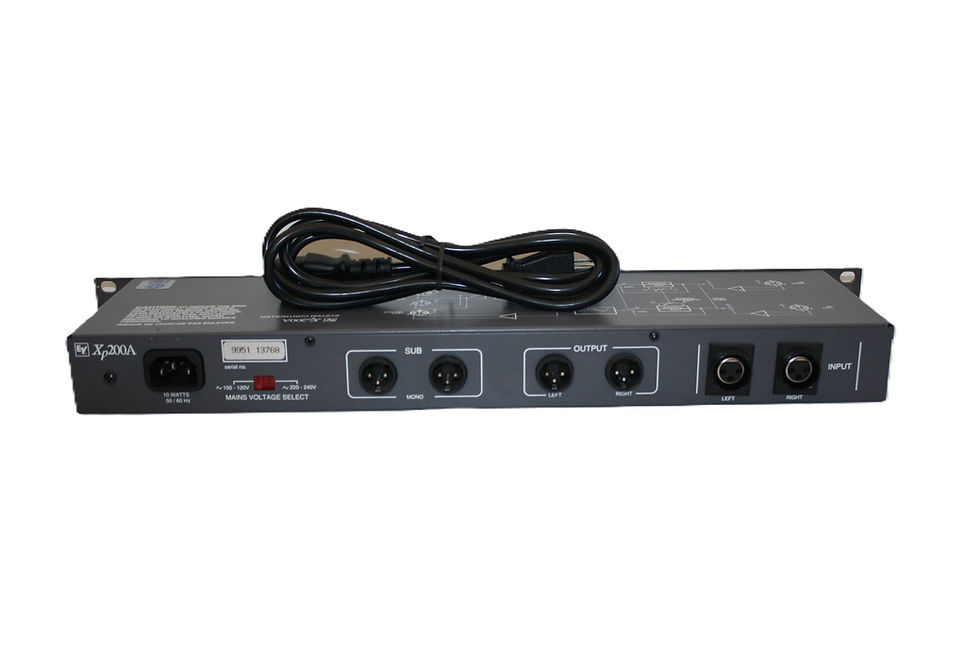

The Electro-Voice Xp200A is an electronic system controller and active crossover that serves as the "heart" for EV's System 200 modular pro-audio sound reinforcement system, linking and enhancing the performance of Sx200 full-range speakers and Sb120/Sb120a bass modules. It features stereo full-range outputs, dual subwoofer outputs, and a low-frequency enhancement circuit to boost bass output for the compatible Sx series speakers.

Key Functions & Features:
System Control: Manages the balance and enhancement of the System 200 Speakers and Subs
Active Crossover: It electronically divides the audio signal, sending appropriate frequencies to the subwoofer and full-range speakers.
Low-Frequency Enhancement: A built-in circuit provides up to 12 dB of enhancement at 70 Hz to significantly increase bass response of the Sx speakers.
Stereo and Subwoofer Outputs: The Xp200A has stereo XLR outputs for the full-range speakers and a monaural subwoofer output.
Front-Panel Controls: For input level, low-frequency profile, and subwoofer level, along with status LEDs for power and clipping.
Speaker Compatibility: Designed for the EV System 200™ (Sx200, Sb120, Sb120a)
Build: The Xp200A is constructed with a steel chassis and uses an external power supply.
